Sag事故の被害

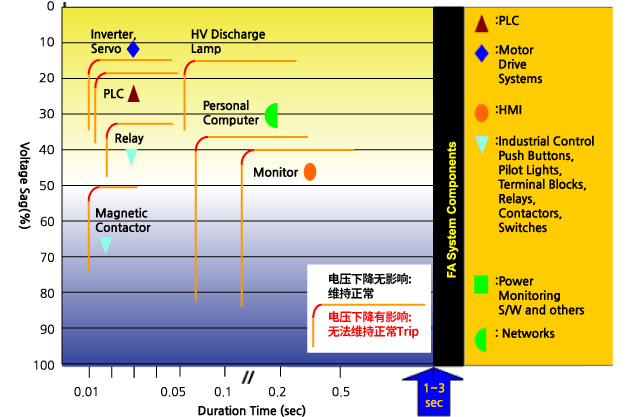

FA Componentsの瞬間電圧降下「Sag」の耐性特性[：Average]
Note:
1. 自動化要素機器の瞬間電圧降下耐性特性：出所 IEEE Std. 1346:1998,[Average]
2. 3相のSag補償性能を基準とする分類である。

NO	Industry	Repoted Cost	Service Voltage	Load
1	Semiconductor	$1,500,000	69kV	25MW
2	Semiconductor	$1,400,000	161kV	30MW
3	Semiconductor	$700,000	12.5kV	10MW
4	Metal Casting	$200,000	13.8kV	16MW
5	Chemical Plant	$160,000	12.5kV	5MW
6	Pulp and Paper Mill	$110,000	161kV	100MW
7	Aerospace Engine Machning	$100,000	13.8kV	10MW
8	Food and Beverage	$87,000	12.5kV	5MW
9	Chemical Plant	$75,000	66kV	3MW
10	Chemical Plant	$75,000	66kV	5MW
11	Electrnic Components	$75,000	12.5kV	5MW
12	Crystal Growth	$60,000	12.5kV	1MW
13	Chemical Plant	$46,175	66kV	30MW
14	Wiring Manufacturing	$34,000	12.5kV	2MW
15	Chemical Plant	$18,000	12.5kV	2MW
16	Fibers Plant	$15,000	12.5kV	1MW
17	Paper and packaging	$10,000	12.5kV	4MW
18	Plastic Bag Manufactuting	$10,000	480kV	4MW
19	Palstics	$7,500	12.5kV	4MW
20	Stanless Steel Manufacturing	$5,500	12.5kV	2MW

Outage Duration (sec)	% of All Outages	Equipment Affected
<0.05	21.875	Build up hydraulic pumps - Build up coolant pumps Termination Ovens - Build up machines
0.05≤ <0.1	37.5	Tin treatment controls - Termination ovens Build up hydraulic pumps - Build up coolant pumps Central plating exhaust - Termination exhaust Scrubber - Rotaries
0.1≤ <0.5	21.875	Build up hydraulic pumps - Build up coolant pumps Central plating exhaust -Termination exhaust Build up & Cutting machines - Plating tank heaters 75hp Compressor - Scrubber - Termination ovens Build up hvac - Brandson Hook BTU'S Hvac #1 -Thermo shock chamber
0.5≤ <1	9.375	Central plating exhaust - Termination exhaust 75hp Compressor - Termination ovens - BTU's Tin treatment controls - QE chambers - Plating tank heaters Lasers - Rotaries - Cutters - Burn in voltage alarms
1≤ <1.5	9.375	Central plating exhaust - Termination exhaust 75hp Compressor - Termination ovens - BTU's Tin treatment controls - Plating tank heaters Hvac #1 - Barber Colman controls
≤1.5	0
